The web interface that is used to access the CIM cell is the Web Viewer application of Intellitek. It enables you to remotely access a specific CIM cell and track the production cycle by providing the graphic display of the operations being performed, the actions performed on the devices as they occur in the production cycle, information regarding the storage locations, etc.
To install the Web Viewer client, Click here to download the executable file and Select run in order to run this program from its current location.
The Web Viewer Client Setup window will be displayed. When the installation is complete, click Finish. Select Save in order to save this program to a specified directory for future installations.
Open the Internet Explorer (version 5.0 and higher), and in the Address field, enter the following IP address:
http://www.cimlab.iitkgp.ernet.in/intellitek/start.asp

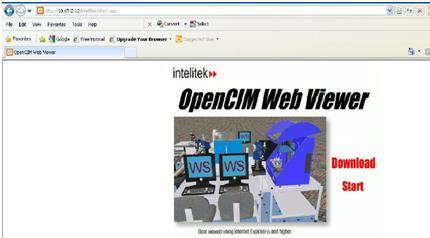

The OpenCIM Web Viewer Initial page is displayed as follows
Click Start. The Open CIM Web Viewer appears displaying the Graphic Displaying the following tabs.
• Graphic Display Tab to show a 3D display of the operations being performed in the CIM cell.
• View Scheduler Tab to display the scheduler information of the CIM cell.
• View Program Tab to display the A-Plan (meaning, the production work order) of the CIM cell.
• View Leaf Tab to display the production activities in the CIM cell.
• View Order Tab to display the current manufacturing order.
• View Storage Tab to display the current location of parts in the CIM cell.
• View Device Tab to display the actions performed by system devices.
• View Pallet Tab to display the pallets in the CIM cell and the current status of each pallet.
• Web Viewer Status Bar to display CIM cell information, such as current status, elapsed time, etc.
