CNC Milling Machine
Theory

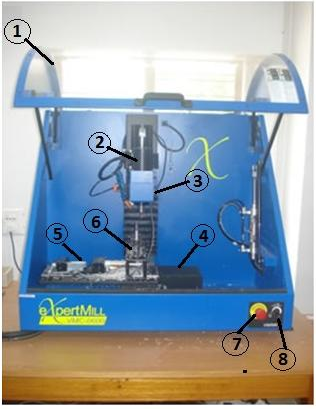

It is equipped with a DC permanent magnet motor spindle with standard tool holder, an automatic air operated drawbar for easy tool changing and a 4-station automatic tool changer (ATC). It has a dual axis pneumatic vise for work holding.
The video shows the action of opening and closing of the jaws of the vise.
It has a pneumatically actuated door that can be automatically opened and closed.
A video of the opening and closing action of the safety shield is shown in the following figure.
 |
 |
 |
The CNC milling machine has three axes, each actuated by a stepper motor.
As the operator faces the machine the X-axis movement moves the table left-right.Fig. shows a video of X axis movemenet.
It is equipped with a DC permanent magnet motor spindle with standard tool holder, an automatic air operated drawbar for easy tool changing and a 4-station automatic tool changer (ATC). It has a dual axis pneumatic vise for work holding.
The video shows the action of opening and closing of the jaws of the vise.
It has a pneumatically actuated door that can be automatically opened and closed.
A video of the opening and closing action of the safety shield is shown in the following figure.
The following are detailed specifications of the cnc milling machine
Power |
1 hp, 746W |
Motor type |
1 hp, 746W DC permanent magnet |
| Speed range | 0-3000 RPM |
| Throat | 5.5" (139 mm) |
Axis Travel |
X axis: 304 mm |
Feed rate |
2-1905 mm/min |
| Rapid traverse | 1905 mm/min |
| Stepper motors | 97 Ncm, 200 steps/rev |
| Nickel-plated table | 436 mm x 127 mm |
Repeatability: |
0.0127 mm |
| Resolution 1/2 step: | 0.0032 mm |
